Ventilator Filter FA4

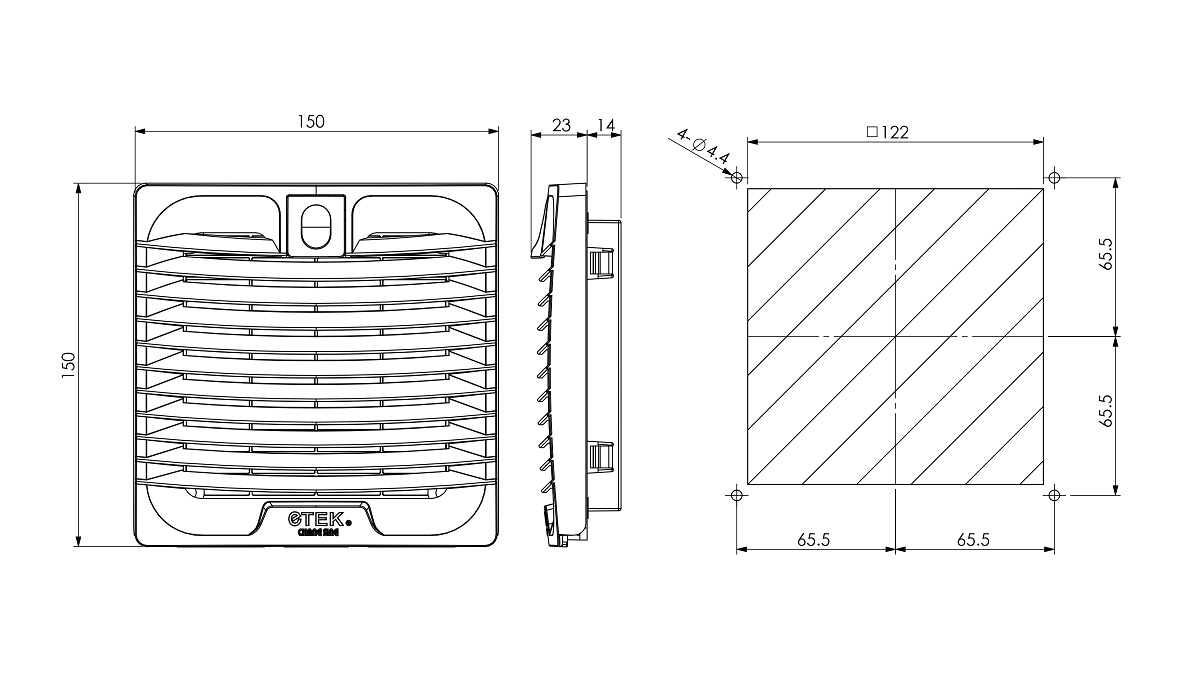

外觀尺寸:150 * 150 mm
開孔尺寸:122 * 122 mm
Model FA4
Dimension 150×150×37 mm ( W×H×D)
Main material Casing material ABS resin,self-extinguishing UL94-V0
Flexural Strength 640 kg/cm2
IZOD Impact 24 kg-cm/cm
Flammability UL-94 2.1mm,V-0(File No E56070)
2.5mm,5VA(UL & C-UL)
Filter material Nylon fibers,self-extinguishing、Temp.-resistance to 100℃、
Moisture resistance to 100%RH.
Max.Air Volume 1.0 M/SEC
Filter mat quality 560 g/m2,filtering degree 83% (A.F.I),particle over Φ5 μm.
Air Volume 130 m3/h
Protection Class IP44
Oprating Twmperature -10℃ ~ +85℃
Weight 0.21 kg/PC
Package Quantity 30 PCS/Box   N.W:6.3 kg   G.W:6.9 kg
Packing Size 590×320×170 mm
