Ventilator Filter F8
| Model | F8 |
|---|---|

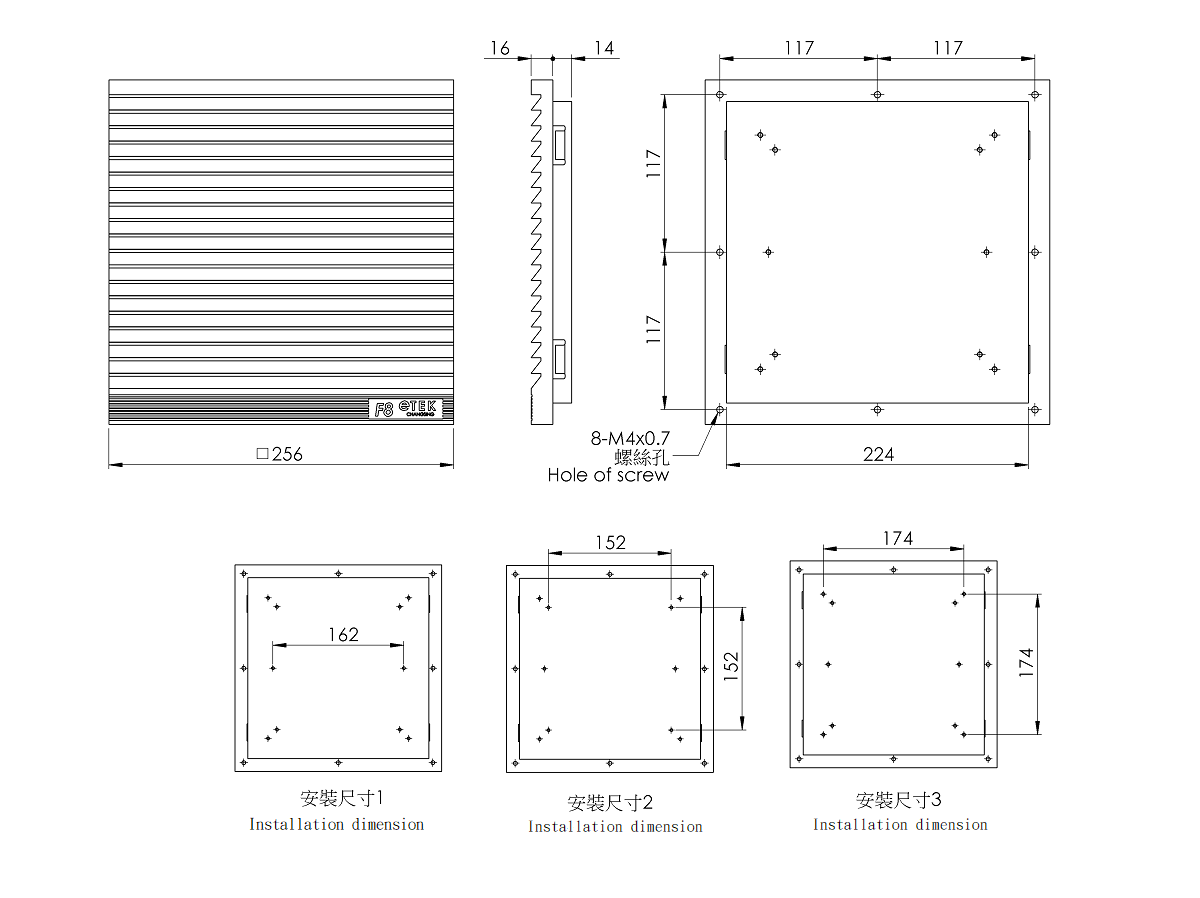

| Dimension | 256×256×30 mm ( W×H×D ) |
| Main material | Casing material ABS resin,self-extinguishing UL94-V0 |
| Flexural Strength | 640 kg/cm2 |
| IZOD Impact | 24 kg-cm/cm |
| Flammability UL-94 | 2.1mm,V-0(File No E56070) 2.5mm,5VA(UL & C-UL) |
| Filter material | Nylon fibers,self-extinguishing、Temp.-resistance to 100℃、 Moisture resistance to 100%RH. |
| Max.Air Volume | 2.0 M/SEC |
| Filter mat quality | 560 g/m2,filtering degree 83% (A.F.I),particle over Φ5 μm. |
| Air Volume | 1020 m3/h |
| Protection Class | IP44、IP54 |
| Oprating Twmperature | -10℃ ~ +85℃ |
| Weight | 0.55 kg/PC |
| Package Quantity | 20 PCS/Box N.W：11 kg G.W：11.5 kg |
| Packing Size | 630×270×273 mm |
