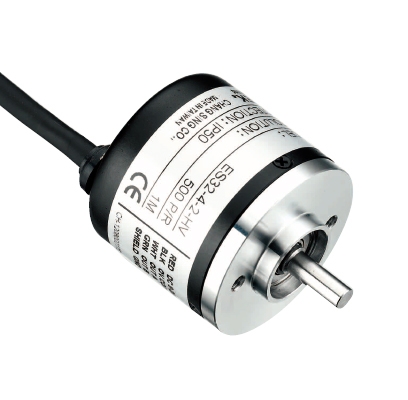

ENCODER ES32-4
| Detection System | Increamental |
|---|---|
| Output Wave | Square Wave |
| Encoder Resolution | 10,40,50,60,100,150,200,250,300,360,400,500,600,800,1000,1024 |
| Output Signal | AB phase |
| Output Type | NPN Voltage,NPN Open collector |
| Rated Voltage | DC5~12V or DC10~26V (NPN Voltage output), DC5~26V (NPN Open collector output) |
| Current Consumption | ≦20mA |
| Output Capacity | Source current:20mA,Residual voltage:0.5V or less |
| Max. Response Frequency | 10K Hz~100K Hz Max |
| Output Phase Difference | A,B phase different 90°±45° (T/4±T/8) |
| Signal Characteristic | 2us or less |
| Polarity | Against reverse protection |
| Shaft Diameter | 4mm |
|---|---|
| Max. Shaft Load | Axial:0.5 Kg, Radial :1 Kg |
| Starting Torque | 20 gf-cm or less |
| Max. Speed of Main Shaft | 6000 rpm |
| Vibration | 10g(10±1,500Hz) |
| Shock | 20g per 11ms |
| Cable | ø4.7,1m long |
| Weight | ≦100g |
| Operating Temperature | -10℃~60℃,95% RH (Non-condensing, Non-freezing) |
|---|---|
| Storage Temperature | -20℃~80℃ (Non-condensing, Non-freezing) |

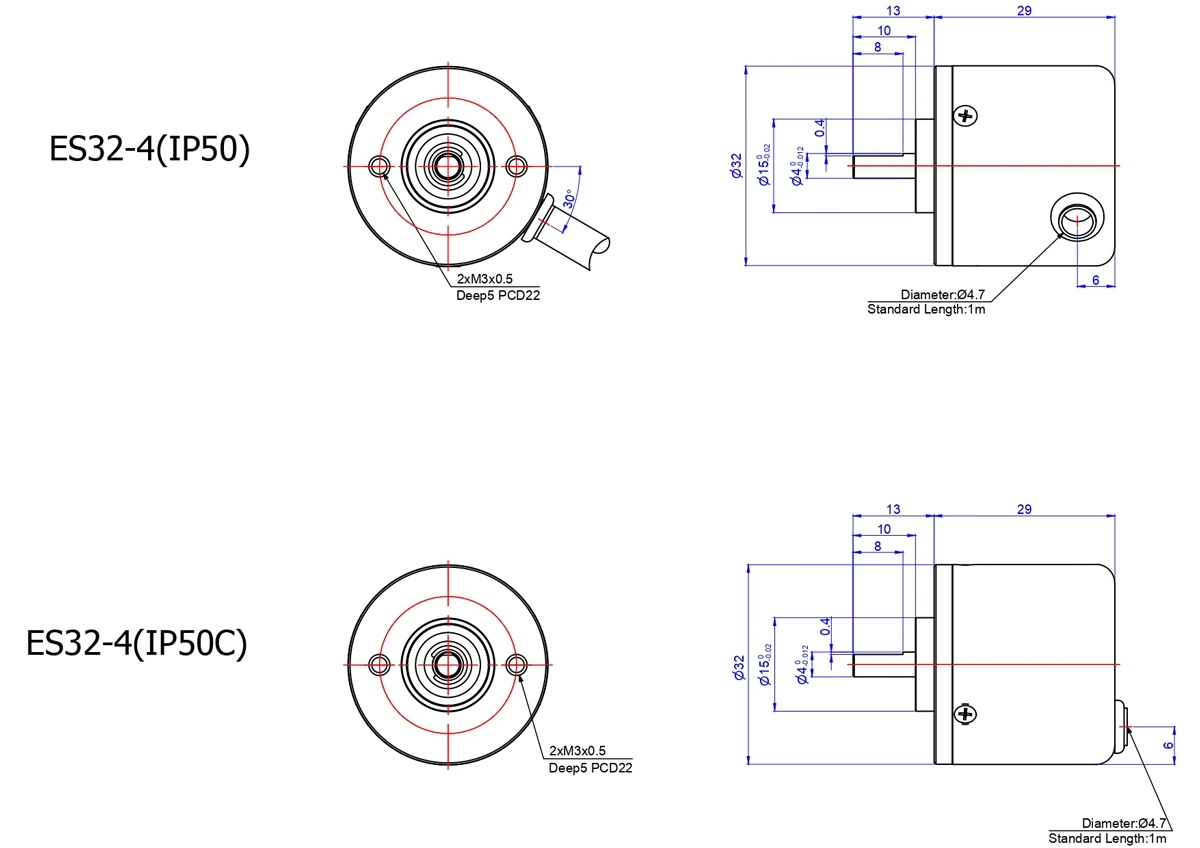

| Protection Degree | IP50/IP50C |
ES32-4
| Encoder Resolution | 10, 40.50,60,100,150,200 250,300,360,400,500,600 800,1000,1024 |
|---|---|
| Output Signal | 2：AB phase |
| Output Type | LV：NPN Voltage 【5-12VDC】 HV：NPN Voltage 【10-26VDC】 C：NPN Open Collector 【5~26VDC】 |
| Rated Voltage | Blank：5-12VDC Blank：10-26VDC Blank：5~26VDC |
