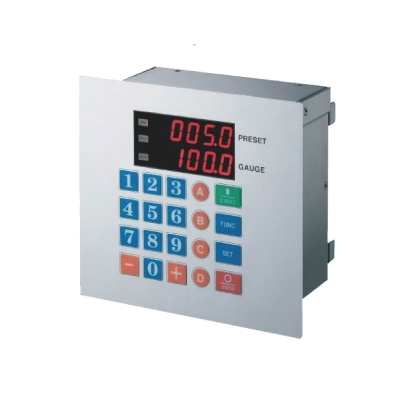

CONTROLLER CHPC-535
| Model Number | CHPC-535 |
|---|---|
| Running Voltage | AC：110V / 220V 50 / 60HZ |
| Power Consumption | 5VA Max |
| Input Signal | ENCODER (DC12V A/B Phase)，Dedicated PROXIMITY SENSOR |
| Output | Relay AC：250V 3A |
| Units of Measure | MM . INCH |
| Command Response Time | 16MIPS |
| Response Time | 0.01mS |
| Memory | FM |
| Environmental Specification | -20℃ ~ +60℃，35% ~ 85%RH No Condensation. |
| Net Weight | 1.6 Kgs |
