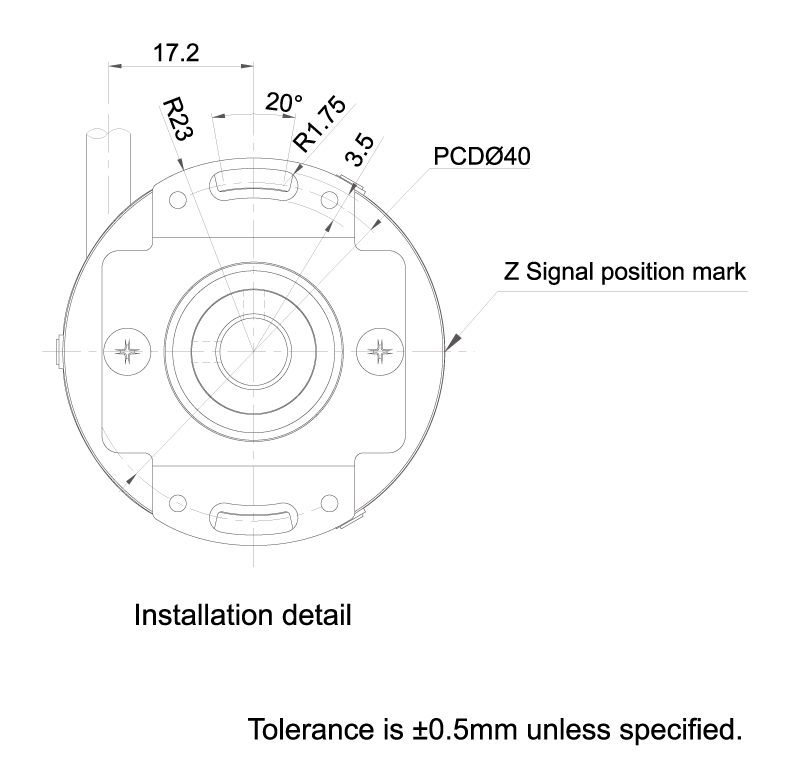

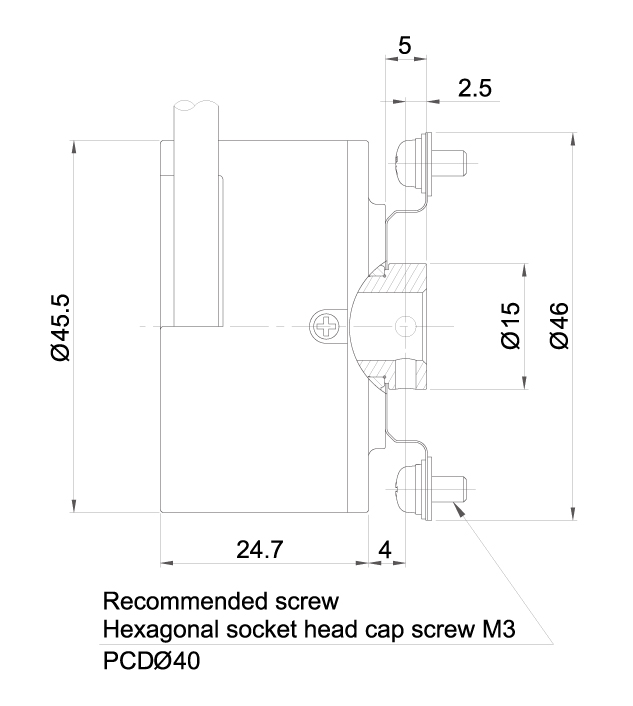

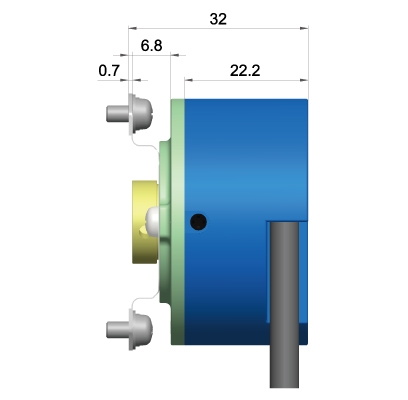

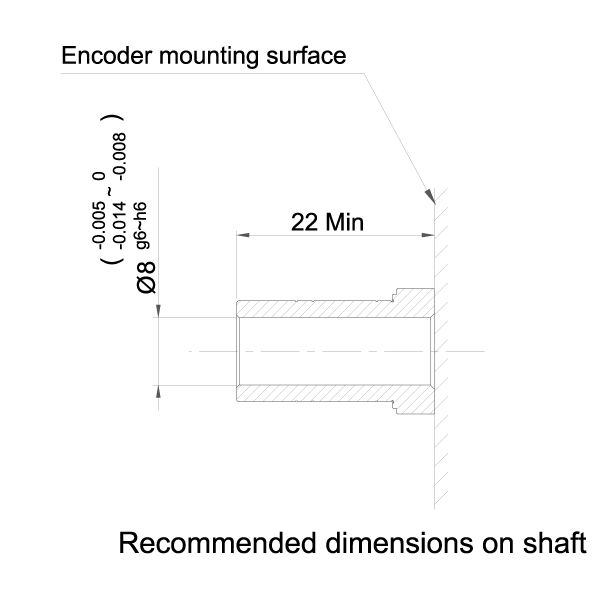

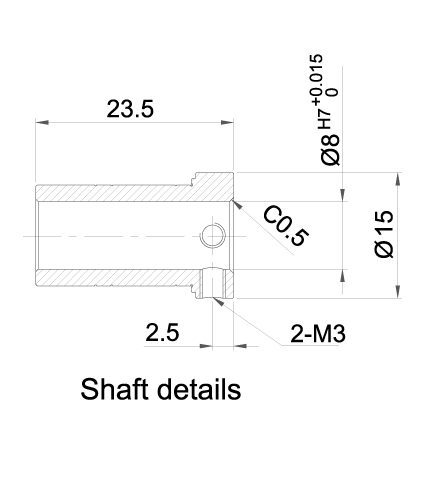

Dimension Download

45H.pdf

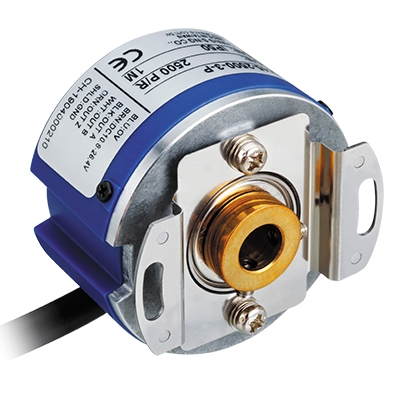

ENCODER 45H
Outer diameter：45.5 mm
Hollow diameter：6 / 8 mm
Resolution：50 ~ 2500 P/R
Protection：IP50
Inquiry
Model Open collector Push pull Line driver
Allowable ripple 3% rms max.      3% rms max.       -
Current consumption   50mA max. 50 mA max. 50mA max.
Signal waveform Two-phase + home position   Two-phase + home position   Two-phase + home position
Maximum response frequency 200kHz 200kHz 200kHz
Duty ratio 50 ± 25% 50 ± 25% 50 ± 25%
Phase difference width 25 ± 12.5% 25 ± 12.5% 25 ± 12.5%
Signal width at home position 100 ± 50% 100 ± 50% 100 ± 50%
Output Rise/Fall time 1 μs max.(when cable length is 1 m) 1 μs max.(when cable length is 1 m) -
Output type NPN open collector output    Push pull    Line-driver
Output logic Negative logic (active low) Positive logic (active high) Positive logic (active high)
Output Current"H" - 10 mA max. -
"L" - 30 mA max. -
Output voltage"H" - 【(Load power voltage)-2.5V】min. 【(Load power voltage)-2.5V】min.
"L" 0.4 V max. 0.6 V Max 0.5 V max.
Inflow current 30 mA max. - -
Load power voltage 30 VDC max. 30 VDC max -
Moment of inertia 65 g-cm2 max.
Friction torque 100 g-cm max.
Maximum allowable speed (Note1) 6000 rpm max.
Shaft LoadingRadial 0.05 mm TIR max.
Axial 0.2 mm max.
Angle 0.1。 max.
Angular acceleration 104 rad/sec2
Net weight 120 g max.
Operating temperature -20 ~ +85℃
Storage temperature -25 ~ +85℃
Operating humidity RH 95% Max No condensation
Vibration resistance 1.5 mm. 5 ~ 50Hz
5G. 50 ~ 200Hz
Shock resistance 100G. 11msec
Protection Simple dust protection：IP50
45H
Resolution 50,100,200,250,300,360,400,500, 600,720,800,900,1000,1024,1200, 1800,2000,2048,2500
Output phase 2：AB phase
3：ABZ Low
4：AB+Z High
Output form C：NPN Open collector  【10.8~26.4VDC】
P：Push pull  【10.8~26.4VDC】
L：Line driver  【4.75 ~ 5.25VDC】
Voltage 10.8~26.4VDC
10.8~26.4VDC
4.75 ~ 5.25VDC
