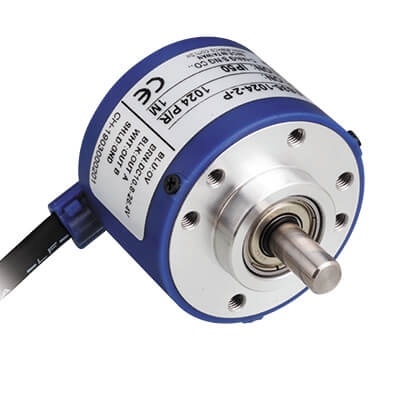

ENCODER 35S 35S

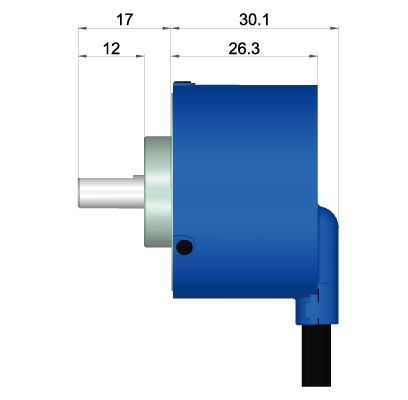

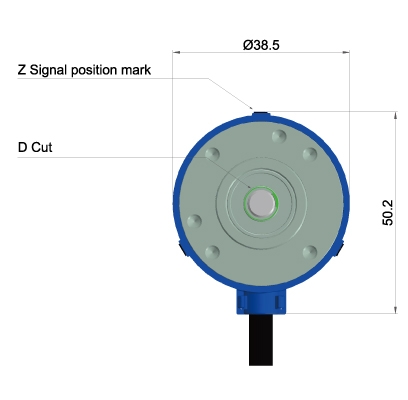

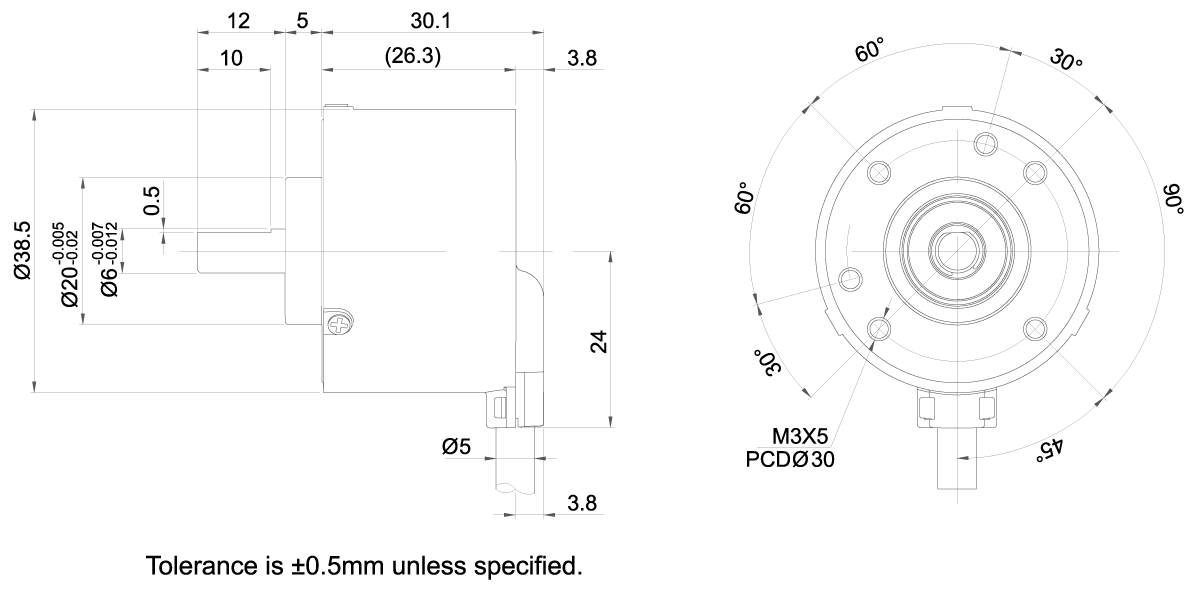

Dimension Download

Model			Open collector	Push pull	Line driver
Allowable ripple			3% rms max.	3% rms max.	-
Current consumption			50mA max.	50mA max.	50mA max.
Signal waveform			Two-phase + home position	Two-phase + home position	Two-phase + home position
Maximum response frequency			200kHz	200kHz	200kHz
Duty ratio			50 ± 25%	50 ± 25%	50 ± 25%
Phase difference width			25 ± 12.5%	25 ± 12.5%	25 ± 12.5%
Signal width at home position			100 ± 50%	100 ± 50%	100 ± 50%
Output	Rise/Fall time		1 μs max.(when cable length is 1 m)	1 μs max.(when cable length is 1 m)	-
	Output type		NPN open collector output	Push pull	Line-driver
	Output logic		Negative logic (active low)	Positive logic (active high)	Positive logic (active high)
	Output Current	"H"	-	10 mA max.	-
	Output Current	"L"	-	30 mA max.	-
	Output voltage	"H"	-	【(Load power voltage)-2.5V】min.	【(Load power voltage)-2.5V】min.
	Output voltage	"L"	0.4 V max.	0.6V max.	0.5 V max.
	Inflow current		30 mA max.	-	-
	Load power voltage		30 VDC max.	30 VDC max.	-

Shaft loading	Radial：20N Thrust：10N
Starting torque	＜0.01Nm
Moment of inertia	0.3 × 10^-6 kgm²
Shaft loading	Radial：20N Thrust：10N
Maximum allowable speed (Note1)	6000 rpm
Net weight	Approx. 100 g

Vibration resistance
Operating temperature	-10 to +70℃
Storage temperature	-25 to +85℃
Operating humidity	35 to 85% RH (with no condensation)
Vibration resistance	Durable for one hour along three axes at 10 to 55 Hz with 0.75 mm amplitude
Shock resistance	11ms with 490 m/s² applied three times along three axes
Shock resistance	11ms with 490 m/s² applied three times along three axes
Protection	Simple dust protection：IP50

35S

Resolution	50,100,200,250,300,360,400,500, 600,720,800,900,1000,1024,1200, 1800,2000,2048,2500
Output phase	2：AB phase 3：ABZ Low 4：AB+Z High
Output form	C：NPN Open collector 【10.8~26.4VDC】 P：Push pull 【10.8~26.4VDC】 L：Line driver 【4.75 ~ 5.25VDC】
Voltage	10.8~26.4VDC 10.8~26.4VDC 4.75 ~ 5.25VDC
